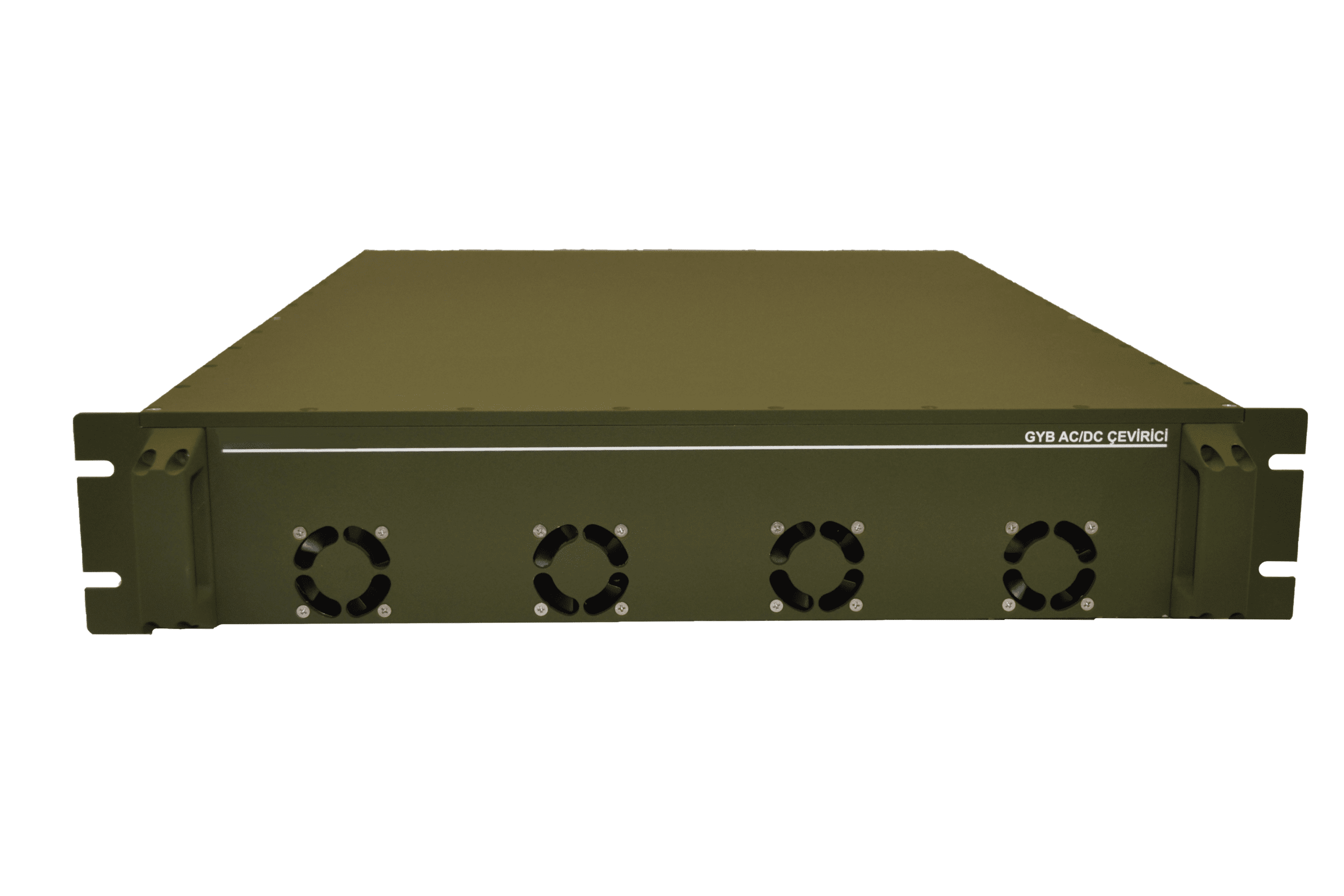

3kW Rack Mount AC/DC Power Supply Unit
3kW Rack Mount AC/DC Power Supply Unit
Product Description
This rack mount AC/DC power supply is manufactured for laboratory use.
3 phase, fed with 230 Vac and regulated at its output, this unit generates +135V and -135V for High Voltage Power Supply. 28V for Power Amplifier Unit/Control Communication Interface Board. Three separate 26V for Power Amplifier Unit cooling fans.
The microprocessor in this unit runs an embedded software that collects information about the unit. Feedback is sent via the communication interface.
Product Properties
| Power | 2700W |
|---|---|
| Input Voltage | 3-Phase, 4-Wire, 90-264 Vac |
| Output Voltage | ± 135 Vdc Isolated |
| Operating Temperature | -30°C to +50°C |
| Storage Temperature | -40°C to +71°C |
| Vibration | MIL-STD-810G |
| Shock | MIL-STD-810G |
| EMI/EMC | MIL-STD-461E |
| Dimensions | 2U case (432 x 88,1 x 620 mm) |
| Weight | 26 kg |
