BGKB Rugged DC UPS System

BGKB Rugged DC UPS System

Product Description

Battery Power Control Unit, can charge the built-in 6t Lithium-Ion batteries via vehicle alternator (24/29 Vdc), this unit can be charged by standard 28 Vdc power supply or AC/DC converter and also can provide power from DC output.

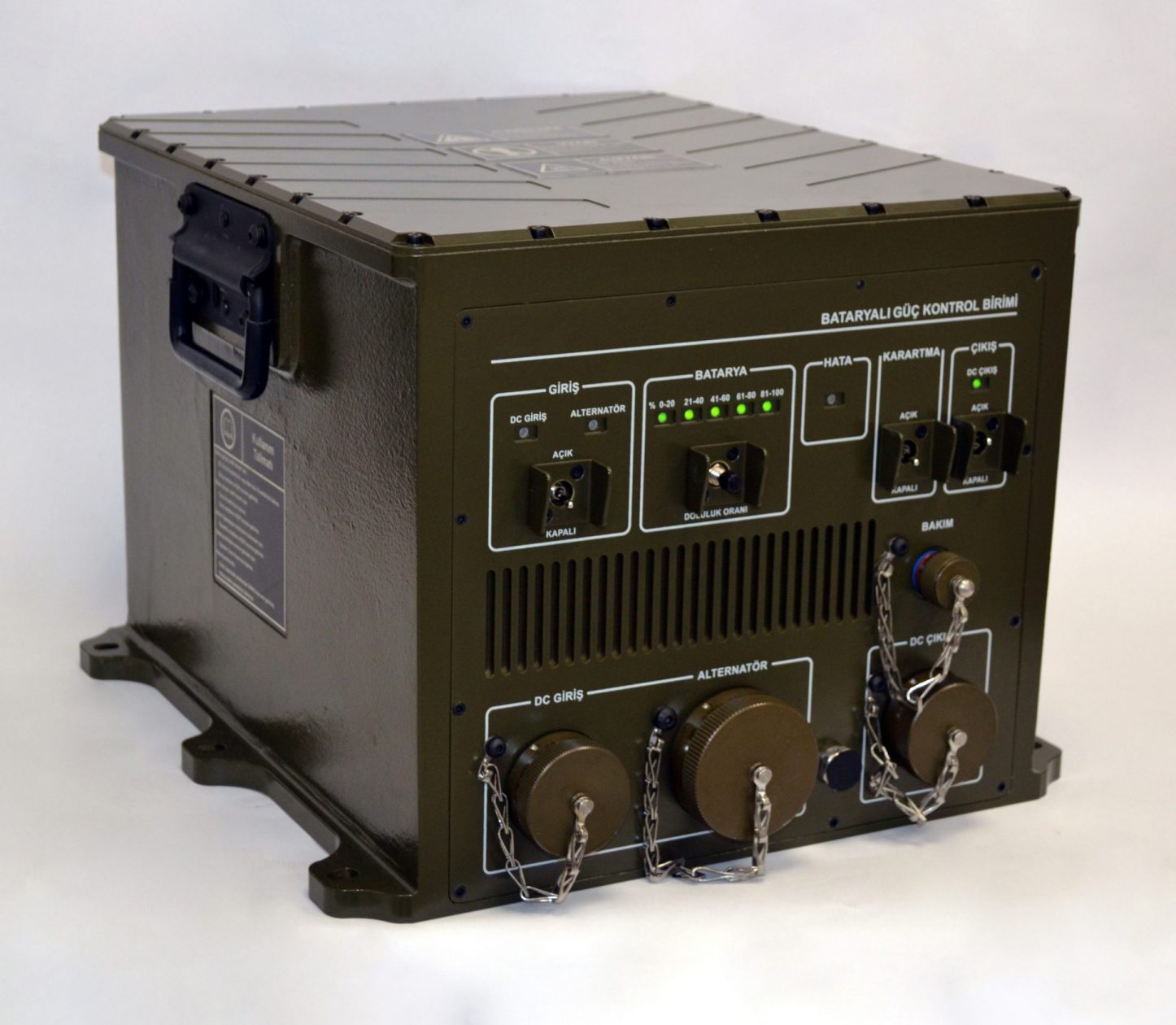

This unit has DC input, alternator, DC output and maintenance connector inputs. There are 3 toggle switches on the front panel to activate the DC input, switch to dimming mode and activate the output, and a push button to learn the state of charge. In addition, there are input, alternator and output leds on the front panel of the device that shows the active power inputs and active output. If an error condition is detected, the error led lights up as a warning.

Category:

Product Properties

Power

3000W

Input Voltage

20-32 Vdc Input, 24-29 Vdc Alternator Input

Output Voltage

20-32 Vdc Output, 3000 W

Operating Temperature

-30°C to +50°C

Storage Temperature

-40°C to +60°C

Vibration

MIL-STD-810G

Shock/Humidity

MIL-STD-810G

EMI/EMC

CE102, CS101, CS114, CS115, CS116, MIL-STD-1275E, MIL-STD-461F, RE101, RE102, RS101, RS103

Dimensions

273 x 361.4 x 360 mm

Weight

34,5 kg
