DC/DC Converter Boards
PRODUCTS
DESCRIPTION
DC/DC Power Converters
KOLT’s power converters are designed to save space, weight, heat and cost.
Ideal for defense applications, KOLT’s power converters can reach the highest efficiency and highest reliability level possible. These systems are being checked for complete compliance with military standards. Our low and high output converters have wide dc input range thus allowing multiple and different useful features across the most military-type vehicles and applications.
Configurable, ruggedized and having standard chassis configurations KOLT’s power converters are an easy choice for the vehicle, battery, robotics, UAV, radar and many more demanding applications.
| Product Name | Power | Input Voltage | Output Voltage | Dimensions | ||
|---|---|---|---|---|---|---|
 | GDK1002 500W DC/DC PoL Converter | 500W | 20-34 Vdc | 36 Vdc, 28 Vdc, 5.4 Vdc | 163 x 82 x 24.9 mm | |

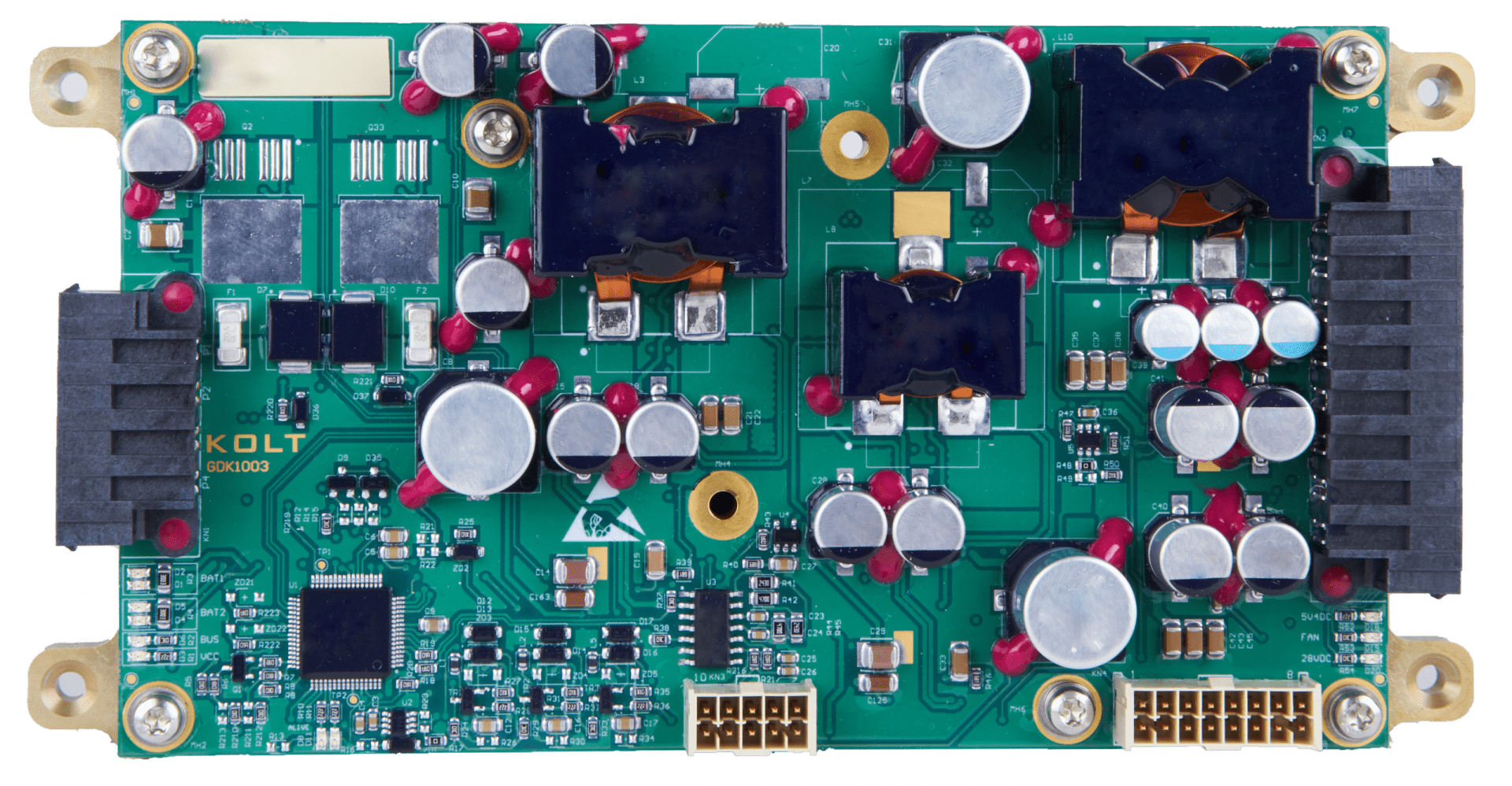

 | GDK1003 450W DC/DC PoL Converter | 450W | 20-34 Vdc | 28 Vdc, 5.4 Vdc | 162 x 82 x 26.8 mm | |
 | GDK1004 380W DC/DC PoL Converter | 380W | 20-34 Vdc | 32 Vdc, 5.4 Vdc | 120 x 69.1 x 25.6 mm | |
 | GDK1005 180W DC/DC PoL Converter | 180W | 20-36 Vdc | 20 Vdc | 56 x 45 x 16.14 mm | |
 | GDK1006 550W DC/DC PoL Converter | 550W | 20-36 Vdc | 28 Vdc, 24 Vdc, 12 Vdc, 5 Vdc, -5 Vdc | 185 x 110 x 19,05 mm | |
 | GDK1007 140W DC/DC PoL Converter | 140W | 18-36 Vdc | 20 Vdc, 26 Vdc | 56 x 45 x 18.75 mm | |
